M5M5V108DFP-70H, 1048576-BIT(131072-WORD BY 8-BIT)CMOS STATIC RAM

7th.July.2000 Ver.1.0 MITSUBISHI LSIs M5M5V108DFP,VP,KV -70H 1048576-BIT(131072-WORD BY 8-BIT)CMOS STATIC RAM .
The M5M5V108DFP,VP,KV are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are fabricated using highperformance triple-polysilico.

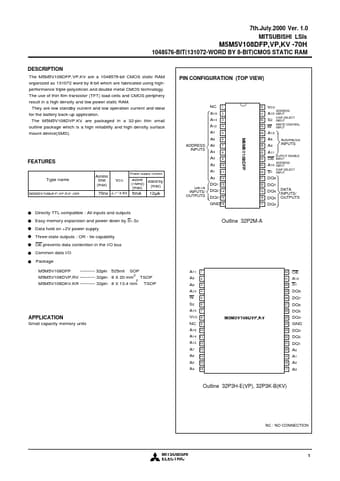

datasheet Preview Page 1 from Datasheet4u.com

M5M5V108DFP-70H_MitsubishiElectricSemiconductor.pdf

M5M5V108DFP-70H Datasheet Preview — Preview of M5M5V108DFP-70H PDF

Datasheet Details

Part number:

M5M5V108DFP-70H

Manufacturer:

Mitsubishi

File Size:

59.59 KB

Description:

1048576-BIT(131072-WORD BY 8-BIT)CMOS STATIC RAM

Features

* Access time (max) Power supply current Type name M5M5V108DFP,VP,KV-70H VCC Active stand-by (1MHz) (max) (max) 70ns 2.7~3.6V 5mA 12µA DATA INPUTS/ OUTPUTS NC 1 A16 2 A14 3 A12 4 A7 5 A6 6 A5 7 A4 8 A3 9 A2 10 A1 11 A0 12 DQ1 13 DQ2 14 DQ3 15 GND 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 1
