M5M5V216AWG-70H Datasheet - Mitsubishi

M5M5V216AWG-70H, 2097152-BIT (131072-WORD BY 16-BIT) CMOS STATIC RAM

revision-01, ' 98.12.08 MITSUBISHI LSIs M5M5V216AWG 2097152-BIT (131072-WORD BY 16-BIT) CMOS STATIC RAM .
The M5M5V216A is a family of low voltage 2-Mbit static RAMs organized as 131,072-words by 16-bit, fabricated by Mitsubishi's high-performance 0.

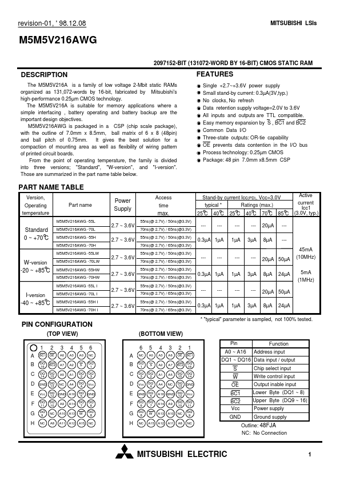

datasheet Preview Page 1 from Datasheet4u.com

M5M5V216AWG-70H_MitsubishiElectricSemiconductor.pdf

M5M5V216AWG-70H Datasheet Preview — Preview of M5M5V216AWG-70H PDF

Datasheet Details

Part number:

M5M5V216AWG-70H

Manufacturer:

Mitsubishi

File Size:

134.60 KB

Description:

2097152-BIT (131072-WORD BY 16-BIT) CMOS STATIC RAM

Features

* Single +2.7~+3.6V power supply Small stand-by current: 0.3µA(3V,typ. ) No clocks, No refresh Data retention supply voltage=2.0V to 3.6V All inputs and outputs are TTL compatible. Easy memory expansion by S , BC1 and BC2 Common Data I/O Three-state outputs: OR-tie capability OE prevents data contentio

Applications

* where a simple interfacing , battery operating and battery backup are the important design objectives. M5M5V216AWG is packaged in a CSP (chip scale package), with the outline of 7.0mm x 8.5mm, ball matrix of 6 x 8 (48pin) and ball pitch of 0.75mm. It gives the best solution for a compaction of mount
