M5M5V5636GP16

18874368-BIT(524288-WORD BY 36-BIT) NETWORK SRAM

M5M5V5636GP16 Features

* Fully registered inputs and outputs for pipelined operation

* Fast clock speed: 167 MHz

* Fast access time: 3.8 ns

* Single 3.3V -5% and +5% power supply VDD

* Separate VDDQ for 3.3V or 2.5V I/O

* Individual byte write (BWa# - BWd#) controls may be t

M5M5V5636GP16 General Description

The M5M5V5636GP is a family of 18M bit synchronous SRAMs organized as 524288-words by 36-bit. It is designed to eliminate dead bus cycles when turning the bus around between reads and writes, or writes and reads. Mitsubishi's SRAMs are fabricated with high performance, low power CMOS technology, pro.

M5M5V5636GP16 Datasheet (262.21 KB)

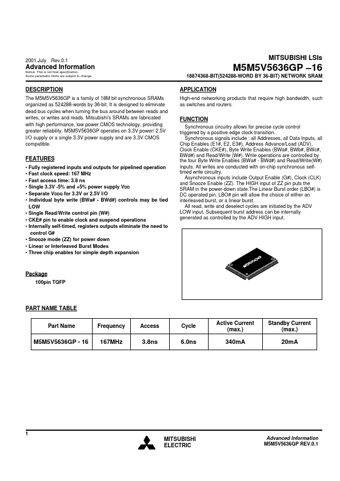

Preview of M5M5V5636GP16 PDF

Datasheet Details

Part number:

M5M5V5636GP16

Manufacturer:

Mitsubishi

File Size:

262.21 KB

Description:

18874368-bit(524288-word by 36-bit) network sram.
2001.July Rev.0.1 MITSUBISHI LSIs Advanced Information Notice: This is not final specification. Some parametric limits are subject to change. M5M5V.
