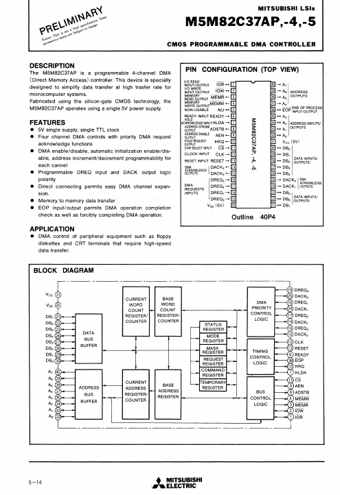

M5M82C37AP-5, M5M82C37AP - CMOS PROGRAMMABLE DMA CONTROLLER

Mitsubishi

Datasheet Details

Part number	M5M82C37AP-5, M5M82C37AP
Manufacturer	Mitsubishi
File Size	1.11 MB
Description	CMOS PROGRAMMABLE DMA CONTROLLER
Datasheet	M5M82C37AP-Mitsubishi.pdf
Note	This datasheet PDF includes multiple part numbers: M5M82C37AP-5, M5M82C37AP. Please refer to the document for exact specifications by model.

The M5M82C37AP is a programmable 4-channel DMA (Direct Memory Access) controller.

5V single supply, single TTL clock.
Four channel DMA controls with priority DMA request acknowledge functions.
DMA enable/disable, automatic initialization enable/dis- able, address increment/decrement programmability for each cannel.
Programmable DREQ input and DACK output logic polarity.
Direct connecting permits easy DMA channel expansion.
Memory to memory data transfer.
EOP input/output permits DMA operation completion check as.
