M5W1793-02P Datasheet - Mitsubishi

FLOPP DISK FORMATTER/CONTROLLER

M5W1793-02P Features

* Single 5V supply voltage

* Accommodate single and double density formats IBM 3740 single density format IBM system 34 double density format

* Selectable sector length (128, 256, 512 or 1024 bytes/ sector)

* Side select compare

* Single/multiple sector read o

M5W1793-02P General Description

The M5W1793-02P is a floppy disk formatter/controller device' which accommodates single and double density formats. The device is designed for use with microprocessors or microcomputers. The device is fabricated with the N-channel silicon gate EO-MOS technology and is packaged in a 40-pin OIL packag.

M5W1793-02P Datasheet (513.61 KB)

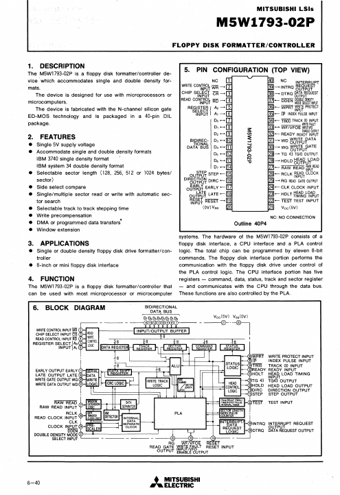

Preview of M5W1793-02P PDF

Datasheet Details

Part number:

M5W1793-02P

Manufacturer:

Mitsubishi

File Size:

513.61 KB

Description:

Flopp disk formatter/controller.
