M62358FP

8-BIT 12CH D-A CONVERTER WITH BUFFER AMPLIFIERS

M62358FP Features

* All channel includes gain change latch circuit with output amplifiers.

* 14-bit serial data input

* Built-in reset circuit Outline 22P4H LD CLK DI Ao7 Ao8 Ao9 Ao10 Ao11 Ao12 NC GND VrefL 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 APPLICATION Conversion fr

M62358FP General Description

The M62358 is a 12-channel 8-bit voltage output digital to analog converter. The M62358 includes data latch circuit and gain change circuit of output amplifiers. Input data is a easy-to-use three-wires serial interface.It is able to cascading serial use with Do terminal. Gain set up data change a ca.

M62358FP Datasheet (62.86 KB)

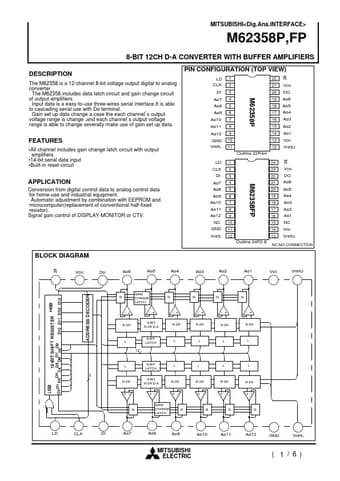

Preview of M62358FP PDF

Datasheet Details

Part number:

M62358FP

Manufacturer:

Mitsubishi

File Size:

62.86 KB

Description:

8-bit 12ch d-a converter with buffer amplifiers.
