M68701 SILICON MOS FET POWER AMPLIFIER

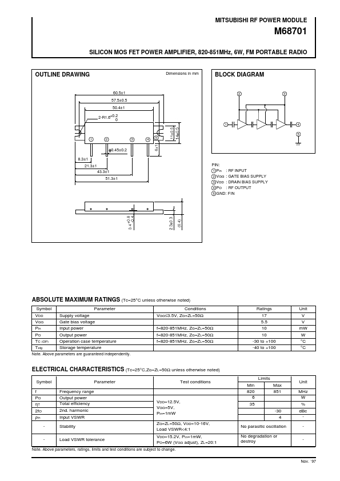

MITSUBISHI RF POWER MODULE M68701 SILICON MOS FET POWER AMPLIFIER, 820-851MHz, 6W, FM PORTABLE RADIO OUTLINE DRAWING 60.5±1 57.5±0.5 50.4±1 2-R1.6+0.2 0 Dimensions in mm BLOCK DIAGRAM 2 3 1 4 5 1 2 3 4 5 0.45±0.2 8.3±1 21.3±1 43.3±1 51.3±1 PIN: 1 Pin : RF INPUT 2 VGG : GATE BIAS SUPPLY 3 VDD : DRAIN BIAS SUPPLY 4 PO : RF OUTPUT 5 GND: FIN ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless otherwise noted) Symbol VDD VGG Pin PO TC (OP) Tstg Parameter Supply voltage Gate bias voltage Input po.
