MF0015M-03ATxx

null8/16-bit Data Bus Flash ATA PC Card

MF0015M-03ATxx Features

* 68 pin PC Card Standard Type-I PC Card Single 5V or 3.3V Supply Card density of up to 105MB maximum Four PC Card ATA and IDE ATA modes Nonvolatile, No Batteries Required High reliability based on internal ECC function Auto power-down mode APPLICATIONS Computers Digital Camera Data Communication Off

MF0015M-03ATxx General Description

Mitsubishi’s Flash ATA cards provide large memory capacities on a device approximately the size of a credit card (85.6mm × 54mm × 3.3mm). The cards use a 8/16 bit data bus. Available in 7.5MB, 15MB, 30MB, 45MB, 60MB, 75MB, 90MB and 105MB capacities, Mitsubishi’s Flash ATA cards conform to the JEIDA/.

MF0015M-03ATxx Datasheet (841.90 KB)

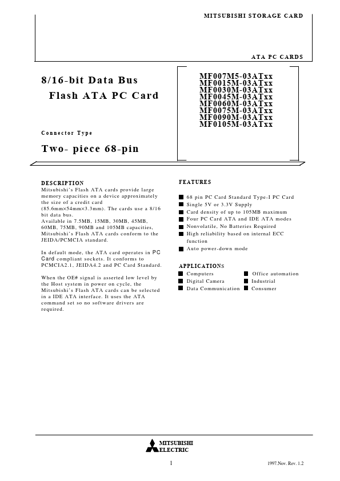

Preview of MF0015M-03ATxx PDF

Datasheet Details

Part number:

MF0015M-03ATxx

Manufacturer:

Mitsubishi

File Size:

841.90 KB

Description:

Null8/16-bit data bus flash ata pc card.
MITSUBISHI STORAGE CARD ATA PC CARDS 8/16-bit Data Bus Flash ATA PC Card MF007M5-03ATxx MF0015M-03ATxx MF0030M-03ATxx MF0045M-03ATxx MF0060M-03ATxx.
