MGF1951A - Medium Power Microwave MESFET

MGF1951A Description

MITSUBISHI SEMICONDUTOR PRELIMINARY MGF1951 MGF1951A Medium Power Microwave MESFET .
The MGF1951A is a 20mW MESFET for S- to Ku-band driver amplifiers and oscillators.

MGF1951A Features

* High Gain and High Output Power GLP=9dB, P1dB=13dBm (typ) @ f=12GHz

📥 Download Datasheet

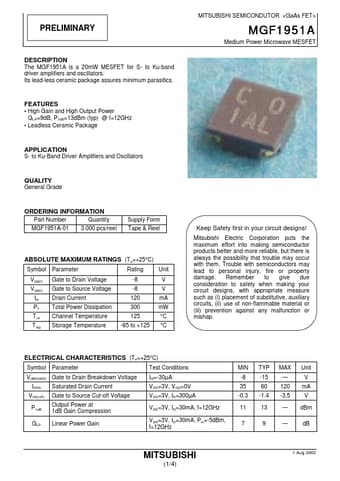

Preview of MGF1951A PDF
datasheet Preview Page 2 datasheet Preview Page 3
