RM1200HE-66S HIGH VOLTAGE DIODE MODULE

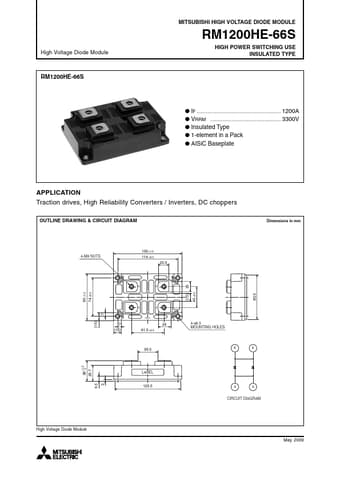

High Voltage Diode Module RM1200HE-66S MITSUBISHI HIGH VOLTAGE DIODE MODULE RM1200HE-66S HIGH POWER SWITCHING USE INSULATED TYPE IF 1200A VRRM 3300V Insulated Type 1-element in a Pack AISiC Baseplate APPLICATION Traction drives, High Reliability Converters / Inverters, DC choppers OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 9.3 4-M8 NUTS 130 ±1.0 114 ±0.3 20.5 90 ±1.0 74 ±0.3 (15) 7 K K 7 (15) A A >PPS< 24 61.5 ±0.5 39.5 LABEL 125.5 +1.0 0.

RM1200HE-66S-Mitsubishi.pdf

Preview of RM1200HE-66S PDF
RM1200HE-66S Datasheet Preview Page 2 RM1200HE-66S Datasheet Preview Page 3

Datasheet Details

Part number:

RM1200HE-66S

Manufacturer:

Mitsubishi

File Size:

73.69 KB

Description:

High voltage diode module.
