CAM-B49 - (CAM-B49/-B50) Power Supply Voltage and Signal

Name: CAM-B49
SKU: CAM-B49-580539

Mitsumi Electronics

The CAM-B49 by Mitsumi Electronics is a (CAM-B49/-B50) Power Supply Voltage and Signal. Below is the official datasheet preview.

Datasheet Details

Part number	CAM-B49
Manufacturer	Mitsumi Electronics
File Size	115.34 KB
Description	(CAM-B49/-B50) Power Supply Voltage and Signal
Datasheet	CAM-B49_MitsumiElectronics.pdf

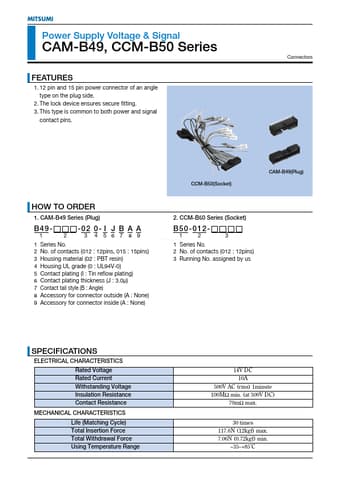

Additional preview pages of the CAM-B49 datasheet.

1. 12 pin and 15 pin power connector of an angle type on the plug side. 2. The lock device ensures secure fitting. 3. This type is common to both power and signal contact pins. CAM-B49(Plug) CCM-B50(Socket) HOW TO ORDER 1. CAM-B49 Series (Plug) 2. CCM-B50 Series (Socket) B491 1 2 3 4 5 6 7 8 9 2 -02 0- I J B A A 3 4 5 6 7 8 9 B50-012www. DataSheet4U. com 1 2 3 Series No. No. of contacts (012 : 12pins, 015 : 15pins) Housing material (02 : PBT resin) Housing UL grade (0 : UL94V-0) Contact p.
