Datasheet Details
Part number:
MM3364A, MM336x
Manufacturer:
Mitsumi
File Size:
222.72 KB
Description:
150ma ldo.
Note:
This datasheet PDF includes multiple part numbers: MM3364A, MM336x.
Please refer to the document for exact specifications by model.

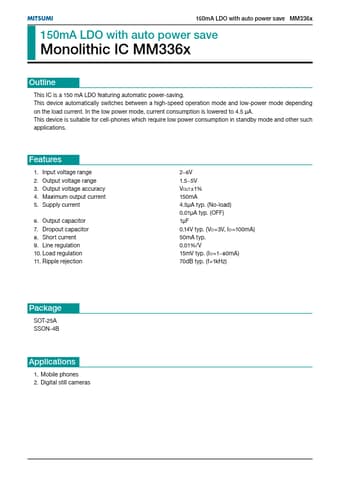

MM3364A, MM336x, 150mA LDO
SOT-25A Pin No.
Pin name 1 VDD 2 GND Functions Voltage *supply pin GND pin ON/OFF *Control pin CE OUTPUT Low OFF 3 CE High ON Connect CE pin with VDD pin, when it is not used.
4 NC No connection 5 VOUT Output pin SSON-4B Pin No.
Pin name Functions ON/OFF *Contro
MM3364A Features
* 1. Input voltage range 2. Output voltage range 3. Output voltage accuracy 4. Maximum output current 5. Supply current 6. Output capacitor 7. Dropout capacitor 8. Short current 9. Line regulation 10. Load regulation 11. Ripple rejection 2~6V 1.5~5V VOUT±1% 150mA 4.5µA typ. (No-load) 0.01µA typ. (OFF
