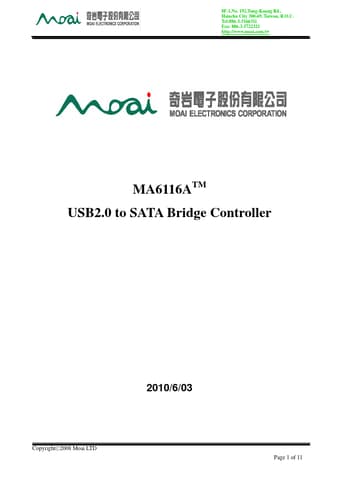

MA6116A USB2.0 to SATA Bridge Controller

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

8F-1,No. 192,Tung-Kuang Rd., Hsinchu City 300-69, Taiwan, R.O.C. Tel:886-3-5166311 Fax: 886-3-5722321 http://www.moai.com.tw MA6116ATM USB2.0 to SATA Bridge Controller 2010/6/03 Copyright©2008 Moai LTD Page 1 of 11 Revision History Revision 1.00 1.05 Date 2010/06/03 2010/10/10 8F-1,No. 192,Tung-Kuang Rd., Hsinchu City 300-69, Taiwan, R.O.C. Tel:886-3-5166311 Fax: 886-3-5722321 http://www.moai.com.tw Summary of Changes ¾ Preliminary draft ¾ Add Neutral string display (MA6116A2) ¾ Add extra .

MA6116A Features

* Maximum Rating Parameter Digital I/O Power Core Power USB PHY Power SATA PHY Driver Power SATA PHY Analog Power SATA PHY Digital Power Pin Number 28 20 12 10 6 2 Symbol VDD33 VDDR18 AVDD33 TXDVDD18 ASVDD18 SVDD18 Operating Voltage Min Typical Max 3 3.3 3.6 1.62 1.8 1.98 3 3.3 3.6 1.62 1.8 1.98
