52974-0408

Board to Board Receptacle

52974-0408 Datasheet (137.42 KB)

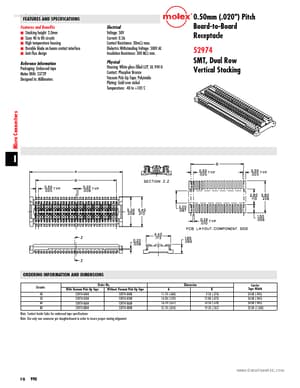

Preview of 52974-0408 PDF

Datasheet Details

Part number:

52974-0408

Manufacturer:

Molex

File Size:

137.42 KB

Description:

Board to board receptacle.

52974-0408 Features

* and Benefits s Stacking height: 2.0mm s Sizes 40 to 80 circuits s High temperature housing s Durable blade on beam contact interface s Anti-flux design Reference Information Packaging: Embossed tape Mates With: 53729 Designed In: Millimeters Electrical Voltage: 50V Current: 0.5A Contact Resistance:
