V29C51400T - 4 MEGABIT 262/144 x 16 BIT/524/288 x 8 BIT 5 VOLT CMOS FLASH MEMORY

Name: V29C51400T
SKU: V29C51400T-295709

Mosel Vitelic Corp

The V29C51400T by Mosel Vitelic Corp is a 4 MEGABIT 262/144 x 16 BIT/524/288 x 8 BIT 5 VOLT CMOS FLASH MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

V29C51400T 4 MEGABIT 262/144 x 16 BIT/524/288 x 8 BIT 5 VOLT CMOS FLASH MEMORY by Mosel Vitelic Corp - Datasheet Preview — Official preview page of the **V29C51400T** 4 MEGABIT 262/144 x 16 BIT/524/288 x 8 BIT 5 VOLT CMOS FLASH MEMORY datasheet (Mosel Vitelic Corp).

Datasheet Details

Part number	V29C51400T
Manufacturer	Mosel Vitelic Corp
File Size	69.59 KB
Description	4 MEGABIT 262/144 x 16 BIT/524/288 x 8 BIT 5 VOLT CMOS FLASH MEMORY
Datasheet	V29C51400T_MoselVitelicCorp.pdf

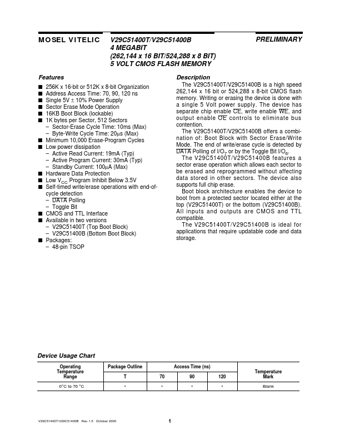

Additional preview pages of the V29C51400T datasheet.

V29C51400T Product details

Description

PRELIMINARY

Features

s s s s s s 256K x 16-bit or 512K x 8-bit Organization Address Access Time: 70, 90, 120 ns Single 5V ± 10% Power Supply Sector Erase Mode Operation 16KB Boot Block (lockable) 1K bytes per Sector, 512 Sectors.
Sector-Erase Cycle Time: 10ms (Max).
Byte-Write Cycle Time: 20µs (Max) Minimum 10,000 Erase-Program Cycles Low power dissipation.
Active Read Current: 19mA (Typ).
Active Program Current: 30mA (Typ).
Standby Current: 100µA (Max) Hardware Data Prot.
