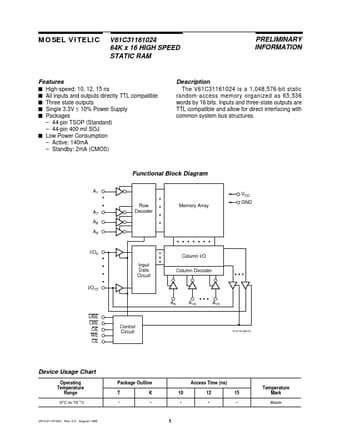

V61C31161024
Features s s s s s High-speed: 10, 12, 15 ns All inputs and outputs directly TTL patible Three state outputs Single 3.3V ± 10% Power Supply Packages
- 44-pin TSOP (Standard)
- 44-pin 400 mil SOJ s Low Power Consumption
- Active: 140m A
- Standby: 2m A (CMOS)
Description
The V61C31161024 is a 1,048,576-bit static random-access memory organized as 65,536 words by 16 bits. Inputs and three-state outputs are TTL patible and allow for direct interfacing with mon system bus structures.
Functional Block Diagram
A1 Row Decoder Memory Array VCC GND
A7 A8 A9
I/O0 Input Data Circuit I/O15 A0 UBE LBE OE WE CE
Column I/O Column Decoder
A10
A15
Control Circuit
6131161024-01
Device Usage Chart
Operating Temperature Range 0°C to 70 °C Package Outline T
- K
- 10
- Access Time (ns) 12
- 15
- Temperature Mark Blank
V61C31161024 Rev. 0.5 August 1999
MOSEL VITELIC
Pin Descriptions
A0- A15 Address Inputs These 16 address inputs select one of the 64K x 16 bit segments in the RAM. CE Chip Enable...
