Description

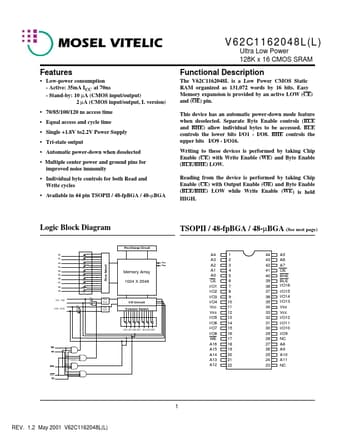

V62C1162048L(L) Ultra Low Power 128K x 16 CMOS SRAM .
The V62C1162048L is a Low Power CMOS Static RAM organized as 131,072 words by 16 bits.
Features
* Low-power consumption - Active: 35mA ICC at 70ns - Stand-by: 10 µA (CMOS input/output) 2 µA (CMOS input/output, L version)
* 70/85/100/120 ns access time
* Equal access and cycle time
* Single +1.8V to2.2V Power Supply
* Tri-state output
* Automatic
Applications
* minimization or elimination of bus contention conditions is necessary during read and write cycle. 9. For test conditions, see AC Test Condition, Figure A. 6
REV. 1.2 May 2001 V62C1162048L(L)
V62C1162048L(L)
Timing Waveform of Write Cycle 1 (Address Controlled)
tWC
Address
tAW
CE BLE/BHE
tCW (
