14H2A2405, 14H2A9404 Datasheet - MotionKing

14H2A2405 2 Phase Hybrid Stepper Motor

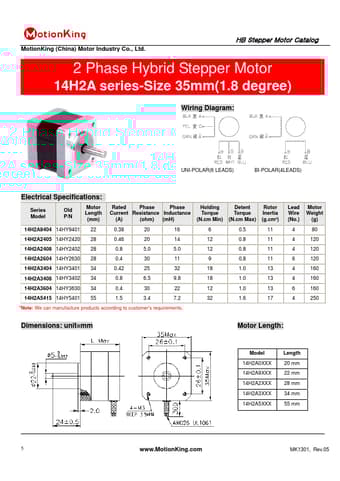

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 14H2A series-Size 35mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Length (mm) Rated Phase Phase Holding Detent Rotor Current Resistance Inductance Torque Torque Inertia (A) (ohm) (mH) (N.cm Min) (N.cm Max) (g.cm²) 14H2A9404 14HY9401 22 0.38 20 16 6 0.5 11 14H2A2405 14HY2420 28 0.46 20 14 12 0.8 11.

14H2A9404-MotionKing.pdf

14H2A2405 Datasheet Preview — This datasheet PDF includes multiple part numbers: 14H2A2405, 14H2A9404. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

14H2A2405, 14H2A9404

Manufacturer:

MotionKing

File Size:

75.27 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 14H2A2405, 14H2A9404.
Please refer to the document for exact specifications by model.
