14H2K2604, 14H2K0404 Datasheet - MotionKing

14H2K2604 2 Phase Hybrid Stepper Motor

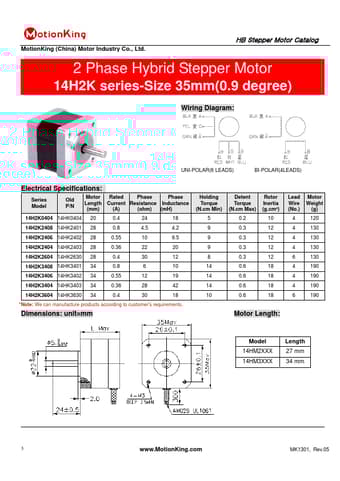

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 14H2K series-Size 35mm(0.9 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Rated Phase Phase Length Current Resistance Inductance (mm) (A) (ohm) (mH) 14H2K0404 14HK0404 20 0.4 24 18 14H2K2408 14HK2401 28 0.8 4.5 4.2 14H2K2406 14HK2402 28 0.55 10 9.5 14H2K2404 14HK2403 28 0.36 22 20 14H2K2604 14HK2630 28.

14H2K0404-MotionKing.pdf

14H2K2604 Datasheet Preview — This datasheet PDF includes multiple part numbers: 14H2K2604, 14H2K0404. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

14H2K2604, 14H2K0404

Manufacturer:

MotionKing

File Size:

71.15 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 14H2K2604, 14H2K0404.
Please refer to the document for exact specifications by model.
