17H2A3417, 17H2A2406 Datasheet - MotionKing

17H2A3417 2 Phase Hybrid Stepper Motor

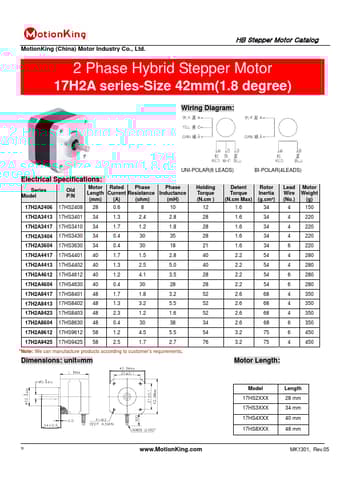

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 17H2A series-Size 42mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N Motor Rated Phase Phase Length Current Resistance Inductance (mm) (A) (ohm) (mH) Holding Torque (N.cm ) Detent Rotor Torque Inertia (N.cm Max) (g.cm²) Lead Motor Wire Weight (No.) (g) 17H2A2406 17HS2408 28 0.6 8 10 12 1.6 34 4 150 17H2A3413 17.

17H2A2406-MotionKing.pdf

17H2A3417 Datasheet Preview — This datasheet PDF includes multiple part numbers: 17H2A3417, 17H2A2406. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

17H2A3417, 17H2A2406

Manufacturer:

MotionKing

File Size:

77.21 KB

Description:

2 phase hybrid stepper motor.

Note:

This datasheet PDF includes multiple part numbers: 17H2A3417, 17H2A2406.
Please refer to the document for exact specifications by model.
