17HS2408 Datasheet - MotionKing

17HS2408 2 Phase Hybrid Stepper Motor

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 17HS series-Size 42mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Step Angle (deg) Motor Length (mm) Rated Phase Phase Current Resistance Inductance (A) (ohm) (mH) 17HS2408 1.8 28 0.6 8 10 17HS3401 1.8 34 1.3 2.4 2.8 17HS3410 1.8 34 1.7 1.2 1.8 17HS3430 1.8 34 0.4 30 35 17HS3630 1.8 34 0.4 30 18 17HS3.

17HS2408-MotionKing.pdf

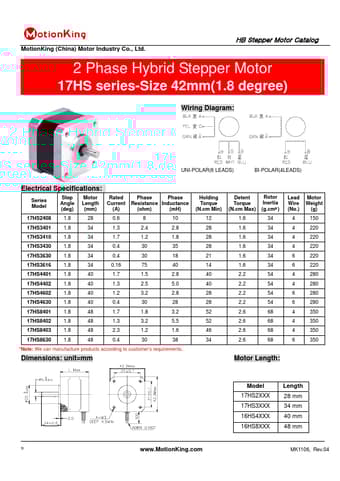

Preview of 17HS2408 PDF

Datasheet Details

Part number:

17HS2408

Manufacturer:

MotionKing

File Size:

94.93 KB

Description:

2 phase hybrid stepper motor.
