24H2A1428 2 Phase Hybrid Stepper Motor

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 24H2A series-Size 60mm(1.8 degree) Wiring Diagram: UNI/BI-POLAR(8 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Old P/N 24H2A4428 24HS4428 Motor Rated Phase Length Current Resistance (mm) (A) (ohm) 45 2.8 0.6 24H2A5428 24HS5428 56 2.8 1.2 24H2A6428 24HS6428 64 2.8 1.0 24H2A7428 24HS7428 76 2.8 1.4 24H2A9442 24HS1442 90 4.2 0.8 24H2A9428 24HS1428 90 2.

24H2A1428 Datasheet (79.67 KB)

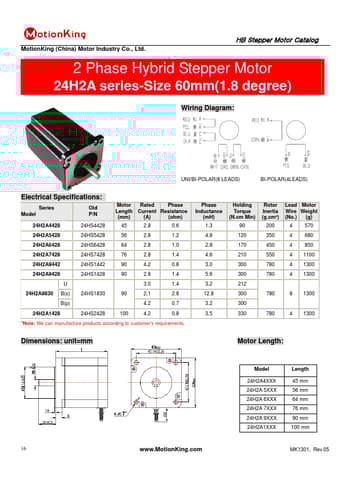

24H2A1428 Datasheet Preview — Preview of 24H2A1428 PDF

Datasheet Details

Part number:

24H2A1428

Manufacturer:

MotionKing

File Size:

79.67 KB

Description:

2 phase hybrid stepper motor.
