1PMT5947BT3 - PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS

Product Overview

Motorola Inc

📥 Download Datasheet

1PMT5947BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS by Motorola Inc - Datasheet Preview — Datasheet preview – 1PMT5947BT3

Datasheet Details

Part number	1PMT5947BT3
Manufacturer	Motorola Inc
File Size	138.26 KB
Description	PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
Datasheet	1PMT5947BT3 Datasheet
Note	This datasheet PDF includes multiple part numbers: 1PMT5947BT3, 1PM. Please refer to the document for exact specifications by model.

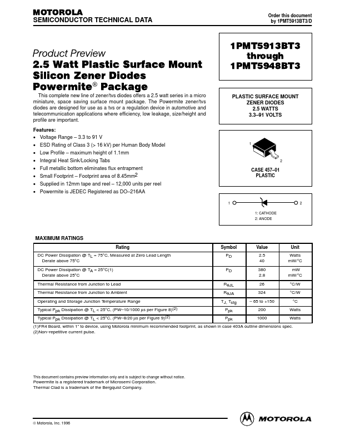

Additional preview pages of the 1PMT5947BT3 datasheet.

Product details

Features

Voltage Range.
3.3 to 91 V.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
Low Profile.
maximum height of 1.1mm.
Integral Heat Sink/Locking Tabs.
Full metallic bottom eliminates flux entrapment.
Small Footprint.
Footprint area of 8.45mm2.
Supplied in 12mm tape and reel.
12,000 units per reel.
Powermite is JEDEC Registered as DO.
216AA 1 1PMT5913BT3 through 1PMT5948BT3 PLA.
