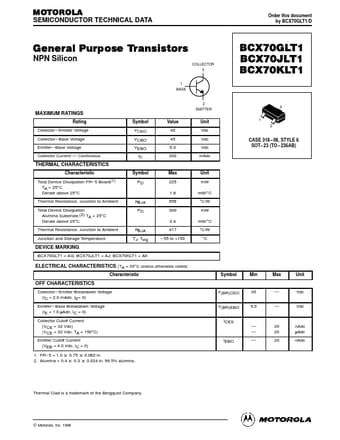

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BCX70GLT1/D General Purpose Transistors NPN Silicon COLLECTOR 3 1 BASE 2 EMITTER Symbol VCEO VCBO VEBO IC Value 45 45 5.0 200 Unit Vdc Vdc Vdc mAdc BCX70GLT1 BCX70JLT1 BCX70KLT1 3 1 2 MAXIMUM RATINGS Rating Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous CASE 318 08, STYLE 6 SOT 23 (TO 236AB) THERMAL CHARACTERI

BCX70GLT1 Features

* uits must fall below the limits indicated by the applicable curve. The data of Figure 20 is based upon T J(pk) = 150 °C; TC or TA is variable depending upon conditions. Pulse curves are valid for duty cycles to 10% provided TJ(pk) ≤ 150°C. TJ(pk) may be calculated from the data in Figure 19. At high
