BZX79C160RL 500 mW DO-35 Glass Zener Voltage Regulator Diodes

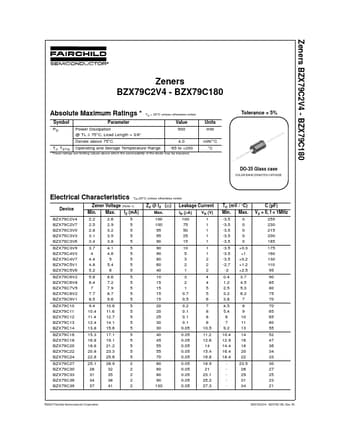

Zeners BZX79C2V4 - BZX79C180 Zeners BZX79C2V4 - BZX79C180 Absolute Maximum Ratings Symbol PD Parameter Power Dissipation @ TL ≤ 75°C, Lead Length = 3/8” Derate above 75°C TJ, TSTG Operating and Storage Temperature Range TA = 25°C unless otherwise noted Tolerance = 5% Units mW mW/°C °C Value 500 4.0 -65 to +200 These ratings are limiting values above which the serviceability of the diode may be impaired. DO-35 Glass case COLOR BAND DENOTES CATHODE Electrical Characteristics Devi.

BZX79C160RL Datasheet (47.96 KB)
