D45H8 Datasheet - Motorola Inc

D45H8 10 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by D44H/D Complementary Silicon Power Transistors . . . for general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers. Low Collector Emitter Saturation Voltage VCE(sat) = 1.0 V (Max) @ 8.0 A Fast Switching Speeds Complementary Pairs Simplifies Designs D44H Series D45H Series Motorol.

D45H8 Datasheet (103.10 KB)

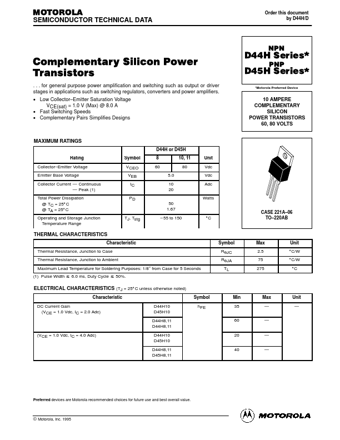

Preview of D45H8 PDF
D45H8 Datasheet Preview Page 2 D45H8 Datasheet Preview Page 3

Datasheet Details

Part number:

D45H8

Manufacturer:

Motorola Inc

File Size:

103.10 KB

Description:

10 ampere complementary silicon power transistors.
