DAN222 Datasheet - Motorola Inc

DAN222 SOT-416/SC-90 PACKAGE COMMON CATHODE DUAL SWITCHING DIODE SURFACE MOUNT

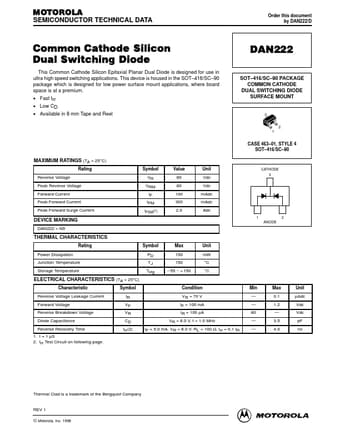

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by DAN222/D Common Cathode Silicon Dual Switching Diode This Common Cathode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SOT 416/SC 90 package which is designed for low power surface mount applications, where board space is at a premium. Fast trr Low CD Available in 8 mm Tape and Reel DAN222 SOT 416.

DAN222 Features

* r’s technical experts. Motorola does not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in
