DSP56001

24-Bit General Purpose Digital Signal Processor

DSP56001 Features

* 512 words of full speed, on-chip program RAM (PRAM) memory, two Plastic Quad Flat Pack (PQFP) 256 word data RAMs, two preprogrammed data Available in a 132 pin, small footprint, ROMs, and special on-chip bootstrap hardware to persurface mount package. mit convenient loading of user programs into the

DSP56001 General Description

The DSP56001 is available in 132 pin surface mount (CQFP and PQFP) or an 88-pin pin-grid array packaging. Its input and output signals are organized into seven functional groups which are listed below and shown in Figure 1. Port A Address and Data Buses Port A Bus Control Interrupt and Mode Control .

DSP56001 Datasheet (884.71 KB)

Preview of DSP56001 PDF

Datasheet Details

Part number:

DSP56001

Manufacturer:

Motorola Inc

File Size:

884.71 KB

Description:

24-bit general purpose digital signal processor.

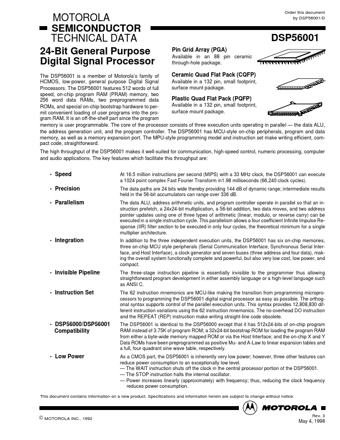

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 24-Bit General Purpose Digital Signal Processor Order this document by DSP56001/D DSP56001 Pin Grid Array (PGA.
