LM339 Quad Single Supply Comparators

LM339 Description

Order this document by LM339/D LM339,ĂLM339A, Quad Single Supply Comparators These comparators are designed for use in level detection, low *l.

LM339 Features

* L J K M D SUFFIX PLASTIC PACKAGE CASE 751A
* 03 (SO
* 14) ISSUE F NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSIONS A AND B DO NOT INCLUDE MOLD PROTRUSION. 4. MAXIMUM MOLD PROTRUSION 0.15 (0.006) PER SIDE. 5. DIMENSION D

LM339 Applications

* in consumer automotive and industrial electronic applications.
* Single or Split Supply Operation LM239,ĂLM239A, LM2901, M2901V , MC3302
* Low Input Bias Current: 25 nA (Typ) Low Input Offset Current: ±5.0 nA (Typ) Low In

📥 Download Datasheet

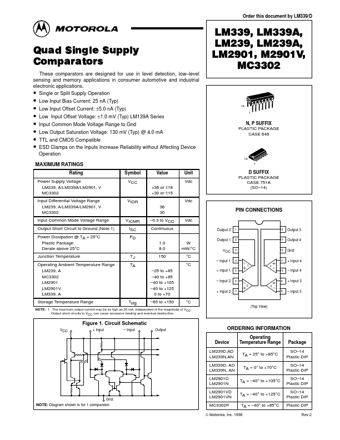

Preview of LM339 PDF
