SA48A Datasheet - Motorola Inc

SA48A MOSORB ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Zener Transient Voltage Suppressors Unidirectional and Bidirectional The SA5.0A series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SA5.0A series is supplied in Motorola’s exclusive, cost-effective, highly reliable Surmetic axial leaded package and is ideally-suited for use in communication system.

SA48A Features

* Stand-off Zener Voltage Range

* 5 to 170 V

* Peak Power

* 500 Watts @ 1 ms

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leakage < 1 µA Above 8.5 Volts

* Maximum Temperature Coefficient Specified

* Response Time is Typically Les

SA48A Datasheet (50.68 KB)

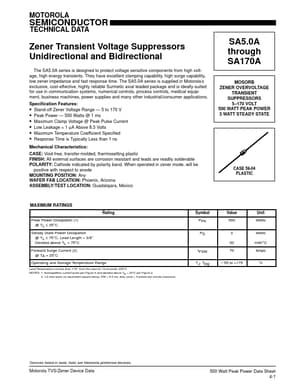

SA48A Datasheet Preview — Preview of SA48A PDF

Datasheet Details

Part number:

SA48A

Manufacturer:

Motorola Inc

File Size:

50.68 KB

Description:

Mosorb zener overvoltage transient suppressors.
