SN54LS13 SCHMITT TRIGGERS DUAL GATE/HEX INVERTER

SCHMITT TRIGGERS DUAL GATE/HEX INVERTER The SN54LS/ 74LS13 and SN54LS / 74LS14 contain logic gates / inverters which accept standard TTL input signals and provide standard TTL output levels. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. Additionally, they have greater noise margin than conventional inverters. Each circuit contains a Schmitt trigger followed by a Darlington level shifter and a phase splitter driving a TTL totem po.

SN54LS13_MotorolaInc.pdf

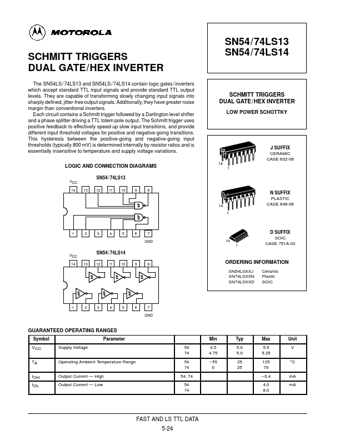

Preview of SN54LS13 PDF
SN54LS13 Datasheet Preview Page 2 SN54LS13 Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS13

Manufacturer:

Motorola Inc

File Size:

62.36 KB

Description:

Schmitt triggers dual gate/hex inverter.
