TPV7025 Datasheet - Motorola Inc

TPV7025 UHF LINEAR POWER TRANSISTOR

MOTOROLA The RF Line SEMICONDUCTOR TECHNICAL DATA Order this document by TPV7025/D UHF Linear Power Transistor . . . designed for output stages in Band IV & V TV transmitter amplifiers. Internal matching of both input and output along with use of a push pull package configuration aids broadband amplifier designs. Gold metallized dice with diffused emitter ballast resistors enhances reliability, ruggedness and linearity. Band IV & V (470 860 MHz) 25 W .

TPV7025_MotorolaInc.pdf

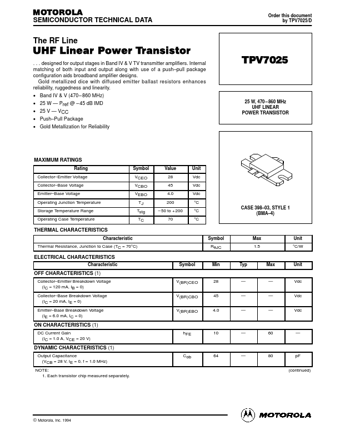

Preview of TPV7025 PDF
TPV7025 Datasheet Preview Page 2 TPV7025 Datasheet Preview Page 3

Datasheet Details

Part number:

TPV7025

Manufacturer:

Motorola Inc

File Size:

79.89 KB

Description:

Uhf linear power transistor.
