MMA8104EG

Digital Axis Micromachined Accelerometer

MMA8104EG Features

* Available in 20g, 40g, 50g, 100g, 150g, and 250g (MMA82XXEG, X-axis) and 40g, 100g, 150g, and 250g (MMA81XXEG, Z-axis). Additional g-ranges may be available upon request 80 customer-accessible OTP bits 10-bit digital data output from 8 to 10 bit DSI output 6.3 to 30 V supply voltage On-chi

MMA8104EG General Description

MMA81XXEG/MMA82XXEG family is a satellite accelerometer which is comprised of a single axis, variable capacitance sensing element with a single channel interface IC. The interface IC converts the analog signal to a digital format which is transmitted in accordance with the DSI-2.0 specification. 1..

MMA8104EG Datasheet (459.78 KB)

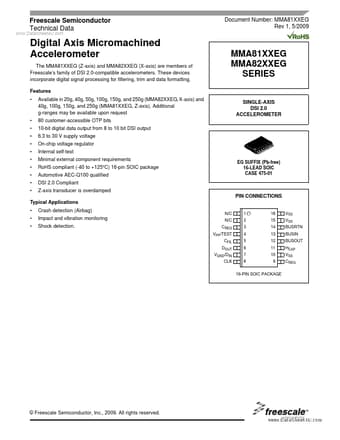

Preview of MMA8104EG PDF

Datasheet Details

Part number:

MMA8104EG

Manufacturer:

Motorola Semiconductor Products

File Size:

459.78 KB

Description:

Digital axis micromachined accelerometer.
www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MMA81XXEG Rev 1, 5/2009 Digital Axis Micromachined Accelerometer The MM.
