MPVZ2202 Datasheet - Motorola Semiconductor

MPVZ2202 Temperature Compensated and Calibrated Presure Sensors

www.DataSheet4U.com Freescale Semiconductor Technical Data MPVZ2202 Rev 0, 09/2006 200 kPa On-Chip Temperature Compensated & Calibrated Pressure Sensors The MPVZ2202 device series is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output - directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span .

MPVZ2202 Features

* Temperature Compensated Over 0°C to +85°C

* Easy-to-Use Chip Carrier Package Options

* Increased media compatibility fluorocarbon gel Typical Applications

* Pump/Motor Controllers

* Robotics

* Level Indicators

* Medical Diagnostics

MPVZ2202 Datasheet (133.29 KB)

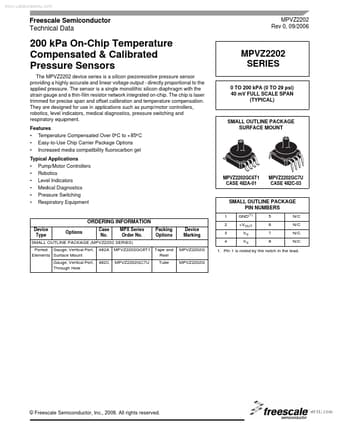

MPVZ2202 Datasheet Preview — Preview of MPVZ2202 PDF

Datasheet Details

Part number:

MPVZ2202

Manufacturer:

Motorola Semiconductor

File Size:

133.29 KB

Description:

Temperature compensated and calibrated presure sensors.
