1N2163 Datasheet - Motorola

1N2163 TEMPERATURE-COMPENSATED ZENER REFERENCE DIODES

1N2163 thru 1N2171 (SILICON) lN2163A thru lN2171A lN3580, A, Bthru lN3583, A, B TEMPERATURE-COMPENSATED ZENER REFERENCE DIODES Highly reliable reference sources utilizing an oxide-passivated junction for long-term voltage stability. Construction consists of welded hermetically sealed metal and glass case. Low Dynamic Impedance Choice of Three Temperature Ranges "Box Method" Specifications Guarantee Maximum Voltage De- viation. Temperature compensated reference diod.

1N2163-Motorola.pdf

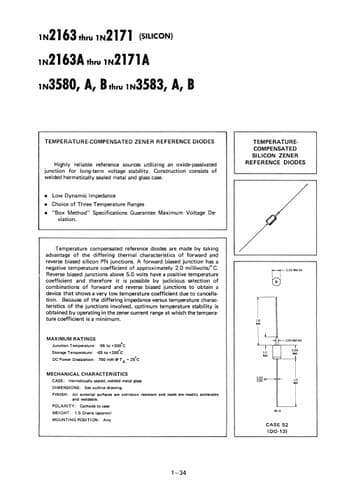

Preview of 1N2163 PDF
1N2163 Datasheet Preview Page 2

Datasheet Details

Part number:

1N2163

Manufacturer:

Motorola

File Size:

130.89 KB

Description:

Temperature-compensated zener reference diodes.
