1N2972, 1N2970 Datasheet - Motorola

1N2972 ZENER DIODES

(each device) Diodeesr5J B Orall Tolerance those assigned JEDEC numbers and/or light voltage tolerances (±3%. ±2%. ±I %). the Motorola type Motorola Tolerance of set (±1 %) number should be used. 10 M 90 T TT Device Motorola Nominal Description Voltage TZ T3 Zener Tolerance Diode (±%).

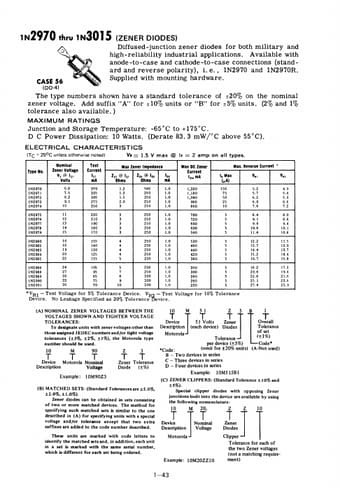

lN2970 thru lN3015 (ZENER DIODES) CASES~ Diffused-junction zener diodes for both military and high-reliability industrial applications. Available with anode-to-case and cathode-to-case connections (stand- ard and reverse polarity), i. e., 1N2970 and 1N2970R. Supplied with mounting hardware. (00-4) The type numbers shown have a standard tolerance of ±20% on the nominal zener voltage. Add suffix "A" for ±10% units or "B" for ±5% units. (2% and 1% tolerance also available.) MAXIMUM RATINGS Ju.

1N2970-Motorola.pdf

1N2972 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N2972, 1N2970. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N2972, 1N2970

Manufacturer:

Motorola

File Size:

137.39 KB

Description:

Zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N2972, 1N2970.
Please refer to the document for exact specifications by model.
