1N3786, 1N3785 Datasheet - Motorola

1N3786 Low silhouette single-ended package

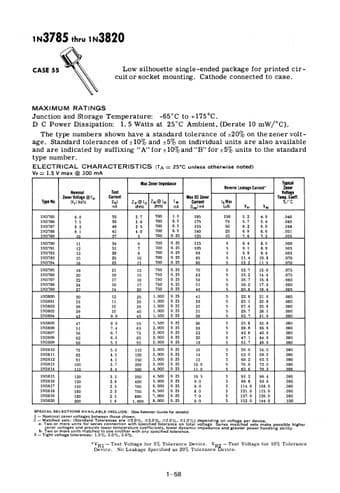

1N3785 thru 1N3820 CASE 55 Low silhouette single-ended package for printed circuit or socket mounting. Cathode connected to case. MAXIMUM RATINGS Junction and Storage Temperature: -65°C to +175°C. D C Power Dissipation: 1. 5 Watts at 25°C Ambient. (Derate 10 mW;oC). The type numbers shown have a standard tolerance of ±20% on the zener voltage. Standard tolerances of ±10% and ±5% on individual units are also available and are indicated by suffixing" A" for ±10% and "B" for ±5% units to the st.

1N3785-Motorola.pdf

1N3786 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N3786, 1N3785. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N3786, 1N3785

Manufacturer:

Motorola

File Size:

92.72 KB

Description:

Low silhouette single-ended package.

Note:

This datasheet PDF includes multiple part numbers: 1N3786, 1N3785.
Please refer to the document for exact specifications by model.
