2N2540 Datasheet - Motorola

2N2540 SWITCHING TRANSISTOR

2N2540 MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage @Total Device Dissipation TA = 25°C Derate above 25°C @Total Device Dissipation Jq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol V C EO VCER VCBO VEBO Pd Pd Tj. TStg Value 30 40 60 5.0 0.5 2.86 1.8 10.3 - 65 to + 200 Unit Vdc Vdc Vdc Vdc Watt mW/°C Watts mW/°C °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characte.

2N2540 Datasheet (32.50 KB)

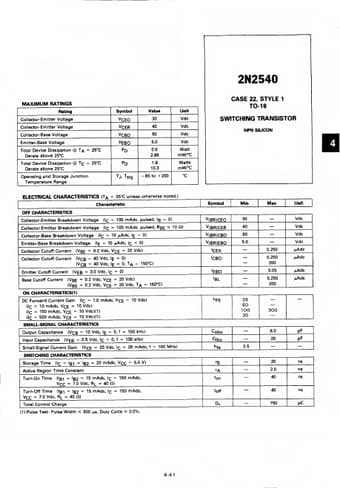

2N2540 Datasheet Preview — Preview of 2N2540 PDF

Datasheet Details

Part number:

2N2540

Manufacturer:

Motorola

File Size:

32.50 KB

Description:

Switching transistor.
