2N2801, 2N2800 Datasheet - Motorola

2N2801 PNP Transistor

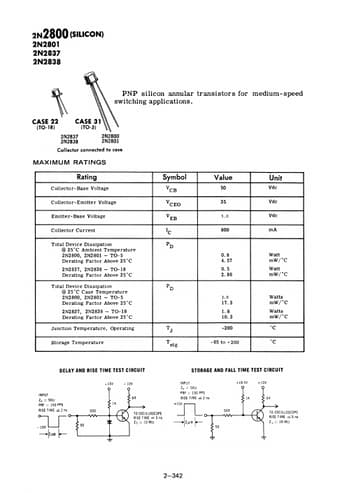

2N2800 (SILICON) 2N2801 2N2837 2N2838 "CASE 22 (TO-18) 2N2837 2N2838 PNP silicon annular transistors for medium-speed switching applications_ 2N2800 2N2801 Collector connected to case MAXIMUM RATINGS Rating Collector-Base Voltage Symbol VCB Value 50 Unit Vdc Collector-Emitter Voltage Emitter-Base Voltage VCEO 35 Vdc VEB s.o Vdc Collector Current IC 600 rnA Total Device Dissipation @ 25'C Ambient Temperature 2N2600, 2N2601 - TO-5 Derating Factor Above 25'C 2N2637, 2N2636 - TO-.

2N2800-Motorola.pdf

2N2801 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N2801, 2N2800. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N2801, 2N2800

Manufacturer:

Motorola

File Size:

101.84 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N2801, 2N2800.
Please refer to the document for exact specifications by model.
