Datasheet Details
- Part number
- 2N3615
- Manufacturer
- Motorola
- File Size
- 262.81 KB
- Datasheet
- 2N3615-Motorola.pdf
- Description
- PNP germanium power transistors
2N3615 Description

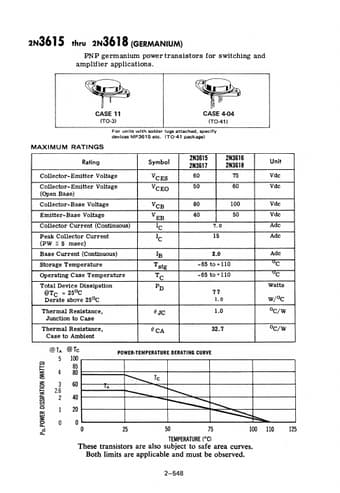

2N3615 thru 2N3618 (GERMANIUM) PNP germanium power transistors for switching and amplifier applications.CASE 11 (TO-3) CASE 4-04 (TO-41) For units.
2N3615 Applications
* CASE 11
(TO-3)
CASE 4-04
(TO-41)
For units with solder lugs attached, specify devices MP3615 etc. (TO-41 package)
MAXIMUM RATINGS
Rating
Collector-Emitter Voltage Collector-Emitter Voltage (Open Base)
Symbol
VCES VCEO
2N3615 2N3617
60
50
2N3616 2N3618
75
60
Collector-Base Voltage
VCB
Emi
