2N3801A DUAL PNP SILICON ANNULAR TRANSISTORS

2N3800 thru 2N3804,A (SILICON) 2N3805,A,2N3806 thru 2N3810,A, 2N3811,A 2N3812 thru 2N3816,A, 2N3817,A DUAL PNP SI LICON ANNULAR TRANSISTORS . specifically designed for differential amplifier applications. Tight hFE Match: 5% High hFE: to 225 (min) @ Ie = 10 I'Adc Low Noise: 1.5 dB (Max) @ 1.0 kHz and 10 kHz hFE Match Temperature Tracking: from - 550 e to +1250 e Tight VBE Match: 1.5 mVdc 2N3810 JAN, JTX and 2N3811 JAN, JTX Available P.

2N3800-Motorola.pdf

This datasheet PDF includes multiple part numbers: 2N3801A, 2N3800. Please refer to the document for exact specifications by model.

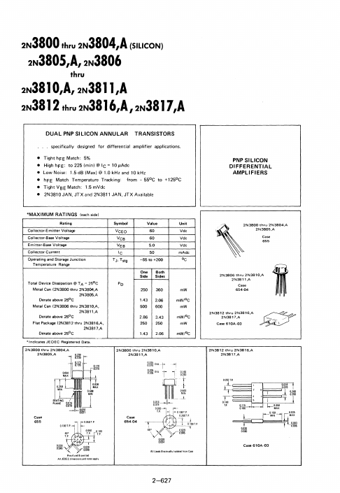

2N3801A Datasheet Preview Page 2 2N3801A Datasheet Preview Page 3

Datasheet Details

Part number:

2N3801A, 2N3800

Manufacturer:

Motorola

File Size:

273.47 KB

Description:

Dual pnp silicon annular transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N3801A, 2N3800.
Please refer to the document for exact specifications by model.
