2N4236 POWER TRANSISTOR

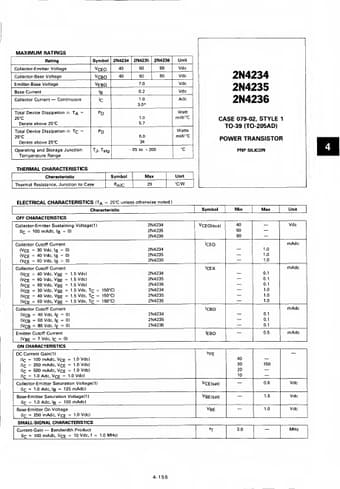

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current Collector Current Continuous Total Device Dissipation (a Ta = 25°C Derate above 25°C Total Device Dissipation (a Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol 2N4234 2N4235 2N4236 VCEO 40 60 80 VCBO 40 60 80 VEBO 7.0 IB 0.2 c 1.0 3.0 PD 1.0 5.7 PD TJ- Tstg 6.0 34 - 65 to + 200 Unit Vdc Vdc Vdc Vdc Adc Watt mW/°C Wa.
