74F243 QUAD BUS TRANCEIVERS

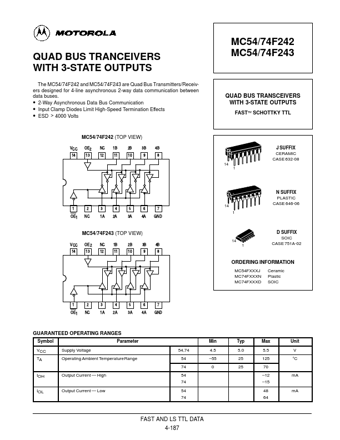

QUAD BUS TRANCEIVERS WITH 3-STATE OUTPUTS The MC54/74F242 and MC54/74F243 are Quad Bus Transmitters/Receivers designed for 4-line asynchronous 2-way data communication between data buses. 2-Way Asynchronous Data Bus Communication Input Clamp Diodes Limit High-Speed Termination Effects ESD > 4000 Volts MC54/74F242 (TOP VIEW) VCC OE2 NC 1B 2B 3B 14 13 12 11 10 9 4B 8 MC54/74F242 MC54/74F243 QUAD BUS TRANSCEIVERS WITH 3-STATE OUTPUTS FAST™ SCHOTTKY TTL 14 1 J .

74F243 Datasheet (121.38 KB)

Preview of 74F243 PDF
74F243 Datasheet Preview Page 2 74F243 Datasheet Preview Page 3

Datasheet Details

Part number:

74F243

Manufacturer:

Motorola

File Size:

121.38 KB

Description:

Quad bus tranceivers.
