74HC32A Datasheet - Motorola

74HC32A - Quad 2-Input OR Gate

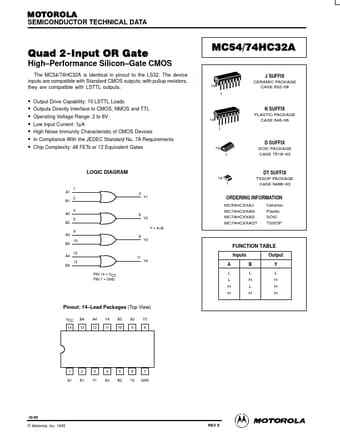

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input OR Gate High Performance Silicon Gate CMOS The MC54/74HC32A is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Output Drive Capability: 10 LSTTL Loads Outputs Directly Interface to CMOS, NMOS and TTL Operating Voltage Range: 2 to 6V Low Input Current: 1µA High Noise Immuni.
