BC850BLT1 - General Purpose Transistors

This page provides the datasheet information for the BC850BLT1, a member of the BC848BLT1 General Purpose Transistors family.

Datasheet Summary

Features

  • = 150°C.
  • 25°C 556°C/W = 225 milliwatts The 556°C/W for the SOT.
  • 23 package assumes the use of the recommended footprint on a glass epoxy printed circuit board to achieve a power dissipation of 225 milliwatts. There are other alternatives to achieving higher power dissipation from the SOT.
  • 23 package. Another alternative would be to use a ceramic substrate or an aluminum core board such as Thermal Clad™. Using a board material such as Thermal Clad, an aluminum core board,.

📥 Download Datasheet

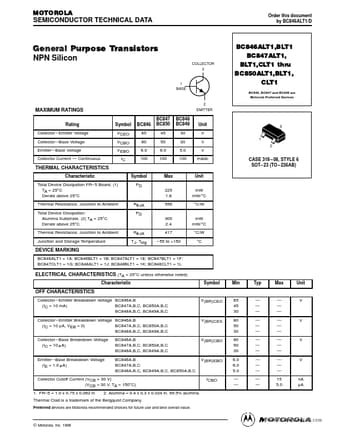

Datasheet preview – BC850BLT1

Datasheet Details

Part number BC850BLT1
Manufacturer Motorola
File Size 188.79 KB
Description General Purpose Transistors
Datasheet download datasheet BC850BLT1 Datasheet
Additional preview pages of the BC850BLT1 datasheet.

📁 Similar Datasheet

  • BC850BLT1G - NPN Silicon Transistor (ON Semiconductor)
  • BC850B - NPN Transistors (Kexin)
  • BC850B - NPN Silicon AF Transistors (Infineon)
  • BC850B - NPN general purpose transistors (NXP)
  • BC850B - NPN Silicon AF Transistors (Siemens Semiconductor Group)
  • BC850B - SMD General Purpose NPN Transistors (Diotec Semiconductor)
  • BC850B - NPN SILICON TRANSISTOR (UTC)
  • BC850B - Transistor (LGE)
  • BC850B - NPN transistor (nexperia)
  • BC850BT - NPN Silicon AF Transistors (Infineon Technologies AG)
Other Datasheets by Motorola

Full PDF Text Transcription

Click to expand full text
MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BC846ALT1/D www.DataSheet4U.com General Purpose Transistors BC846ALT1,BLT1 BC847ALT1, NPN Silicon 1 BASE COLLECTOR 3 BLT1,CLT1 thru BC850ALT1,BLT1, CLT1 BC846, BC847 and BC848 are Motorola Preferred Devices MAXIMUM RATINGS Rating Collector – Emitter Voltage Collector – Base Voltage Emitter – Base Voltage Collector Current — Continuous Symbol VCEO VCBO VEBO IC BC846 65 80 6.0 100 BC847 BC850 45 50 6.0 100 BC848 BC849 30 30 5.
