BF244 Datasheet - Motorola

BF244 JFET VHF/UHF AMPLIFIER

BF244,A,B,C CASE 29-02, STYLE 22 TO-92 (TO-226AA) MAXIMUM RATINGS Rating Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Drain Current Forward Gate Current @Total Device Dissipation Ta = 25°C Derate above 25°C Storage Channel Temperature Range Symbol VDS vdg vgs id 'G(f) PD Tstq Value ±30 30 30 100 10 360 2.88 -65 to +150 Unit Vdc Vdc Vdc mAdc mAdc mW mW/°C °C ELECTRICAL CHARACTERISTICS

BF244-Motorola.pdf

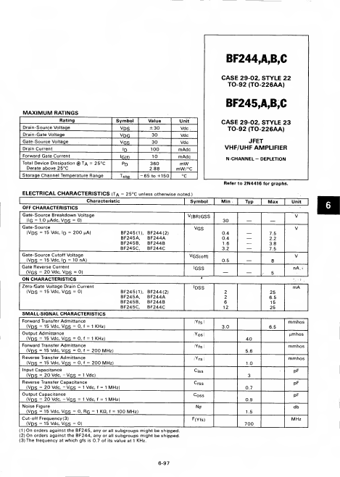

BF244 Datasheet Preview — Preview of BF244 PDF

Datasheet Details

Part number:

BF244

Manufacturer:

Motorola

File Size:

32.23 KB

Description:

Jfet vhf/uhf amplifier.
