DO-204AH - GLASS ZENER DIODES 500 MILLIWATTS 1.8.200 VOLTS

Datasheet Summary

Features

  • Complete Voltage Range.
  • 1.8 to 200 Volts.
  • DO-204AH Package.
  • Smaller than Conventional DO-204AA Package.
  • Double Slug Type Construction.
  • Metallurgically Bonded Construction Mechanical Characteristics: CASE: Double slug type, hermetically sealed glass.

📥 Download Datasheet

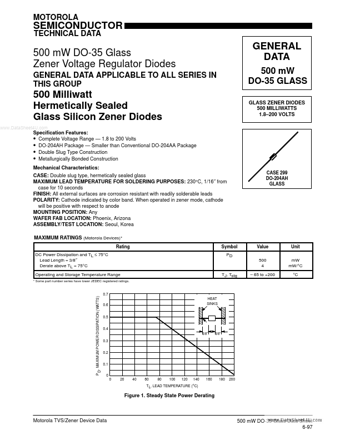

Datasheet preview – DO-204AH
