MAC224A6 Datasheet - Motorola

MAC224A6 Triac

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MAC224/D Triacs Silicon Bidirectional 40 Amperes RMS Triode Thyristors . . . designed primarily for full-wave ac control applications such as lighting systems, heater controls, motor controls and power supplies. Blocking Voltage to 800 Volts All Diffused and Glass-Passivated Junctions for Parameter Uniformity and Stability Gate Triggering Guaranteed in Three Modes (MAC224 Series) or Four Modes (MAC224A.

MAC224A6_MotorolaInc.pdf

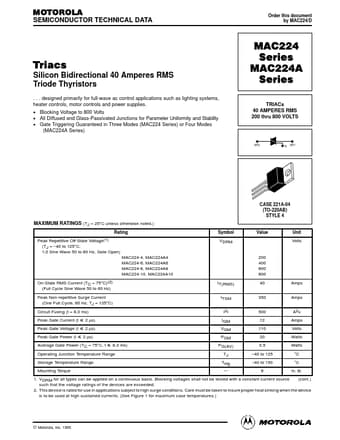

Preview of MAC224A6 PDF
MAC224A6 Datasheet Preview Page 2 MAC224A6 Datasheet Preview Page 3

Datasheet Details

Part number:

MAC224A6

Manufacturer:

Motorola

File Size:

85.12 KB

Description:

Triac.
