MBR4015 SWITCHMODE Power Rectifier

MBR4015 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MBR4015LWT/D Advance Information SWITCHMODE™ Power Rectifier ...using the Schottky .

MBR4015 Features

* Dual Diode Construction
* Terminals 1 and 3 May Be Connected for Parallel Operation at Full Rating
* 15 Volt Blocking Voltage
* Very Low Forward Voltage Drop
* Guardring for Stress Protection and High dv/dt Capability
* Guaranteed Reverse Avalanche

MBR4015 Applications

* and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intend

📥 Download Datasheet

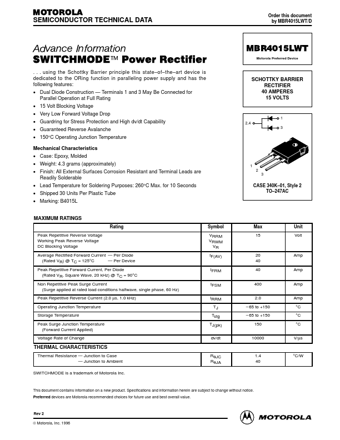

Preview of MBR4015 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR4015
Manufacturer
Motorola
File Size
68.95 KB
Datasheet
MBR4015_MotorolaInc.pdf
Description
SWITCHMODE Power Rectifier
