MC100E116 QUINT DIFFERENTIAL LINE RECEIVER

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quint Differential Line Receiver MC10E116 MC100E116 The MC10E/100E116 is a quint differential line receiver with emitter-follower outputs. An internally generated reference supply (VBB) is available for single-ended reception. 500ps Max. Propagation Delay VBB Supply Output Dedicated VCCO Pin for Each Receiver Extended 100E VEE Range of 4.2V to 5.46V 75kΩ Input Pulldown Resistors QUINT.

MC100E116 Features

* clamp circuitry to cause a defined state if both the inverting and non-inverting inputs are left open; in this case the Q output goes LOW, while the Q output goes HIGH. This feature makes the device ideal for twisted pair applications. If both in

MC10E116-Motorola.pdf

This datasheet PDF includes multiple part numbers: MC100E116, MC10E116. Please refer to the document for exact specifications by model.

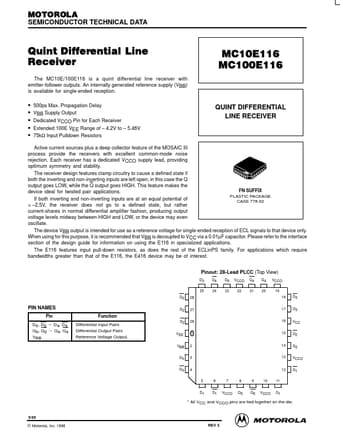

MC100E116 Datasheet Preview Page 2 MC100E116 Datasheet Preview Page 3
